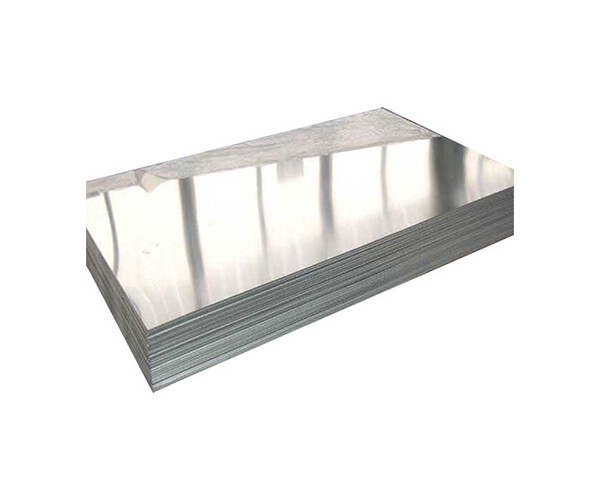

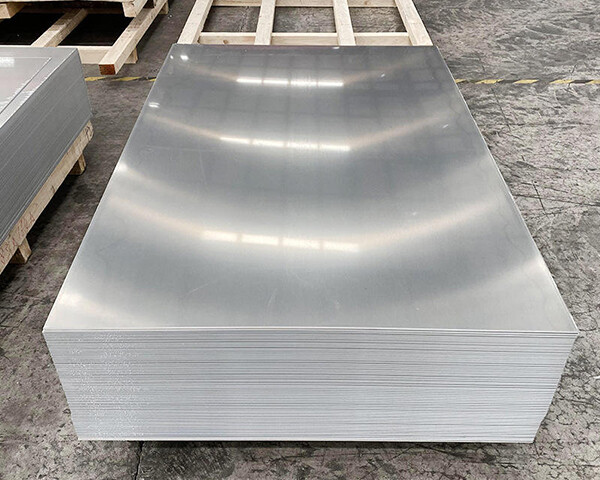

3003/3105 Aluminum Plate

3003 aluminum plate is a commonly used product in the aluminum-manganese alloy series. Due to the manganese alloy element, this product has excellent anti-rust properties and is also called anti-rust aluminum plate. It is often used for processing parts and components that require good formability, high corrosion resistance and good weldability.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Aluminum Product > Aluminium plate > 3003/3105 Aluminum Plate

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

3003 aluminum is an AL-Mn alloy and is the most widely used anti-rust aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum) and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties. It has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening. It is mainly used for low-load parts that require high plasticity and good weldability and work in liquid or gas media, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing. 3003 aluminum plates are commonly used in ships, warships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels that require strict fire protection, refrigeration devices, transportation equipment, etc.

3105 aluminum is AL-Mn alloy, is the most widely used a kind of anti-rust aluminum, the strength of this alloy is not high (slightly higher than industrial pure aluminum), can not be strengthened by heat treatment, so the use of cold processing method to improve its mechanical properties: In the annealing state has a high plasticity, in the semi-cold hardening plasticity is good, cold hardening plasticity is low, good corrosion resistance, good weldability, poor machinability. Typical products: room partition, color coating aluminum substrate, lamp cap material, blinds, bottle cap material, cake tray

Product Parameters

Width	20-3000mm or Customized	Thickness	0.3-120mm or Customized
Length	100-12000mm or Customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.6000 Series: 6061, 6063, 6082, 6A02, etc.7000 Series: 7050, 7475, 7075, etc.8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time	Received 30%, After deposit 7-15 working day
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.
Sample	Free Offers Sample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Margin

Mechanical Properties

	Tensile Strength (MPa)	Test Stress(MPa)	HardnessHB	Elongation Rate(%)
3003	95-135	≥ 35	28	10
3105	120-160	≥ 85	-	-

Physical Performance

	Density	Melting Point	Thermal Expansion	Thermal Conductivity	Resistivity
3003	2.73 Kg/m³	655 °C	23.1(10 -6/℃)	190 W/m.K	0.034× 10-6Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Xinyuan Steel Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel）

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.

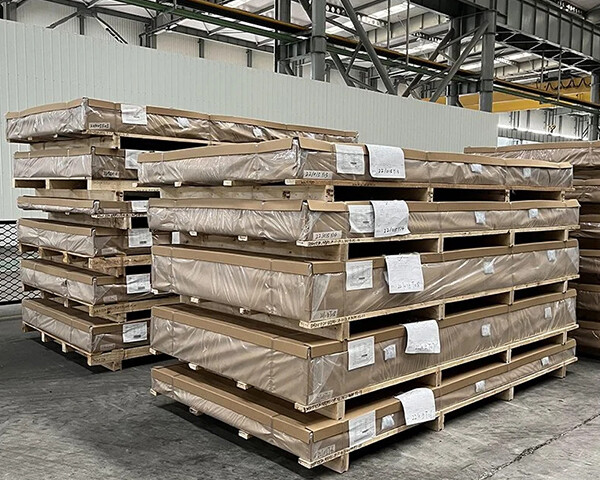

PACKAGING
