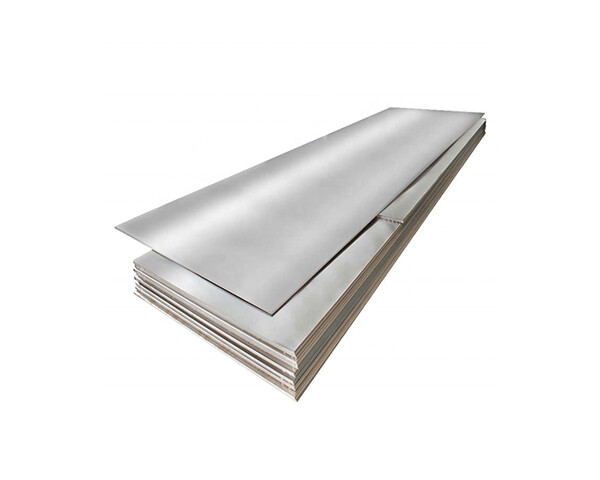

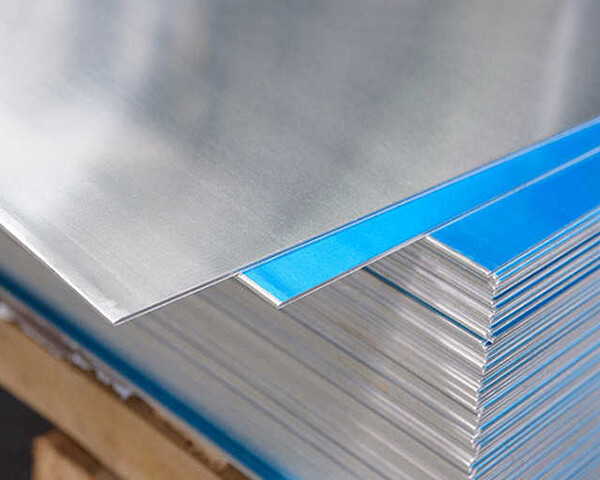

1050/1060/1070 Aluminum Plate

Aluminum plate refers to the material made of pure aluminum or alloy aluminum through pressure processing, its cross section is usually rectangular, uniform thickness. The thickness of the aluminum plate is more than one-tenth of the width, and is greater than 0.2mm, which is called the aluminum plate; The thickness of less than 0.2mm is called aluminum foil.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Aluminum Product > Aluminium plate > 1050/1060/1070 Aluminum Plate

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

1050 aluminum strip is a product in the pure aluminum plate series, and the chemical composition and mechanical properties of 1060 series products are close, and the application is basically replaced by 1060 aluminum strip.1050 aluminum is often used in daily necessities, lighting appliances, reflective panels, ornaments, chemical industry containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products. In some occasions that require high corrosion resistance and formability, but the strength requirements are not high, chemical equipment is its typical use.

1060 aluminum has a wide range of applications in aerospace, transportation and other industrial fields, and is often subjected to impact loads under high temperature and high pressure conditions in a variety of other complex working environments. Its main uses are as follows: used in products with low strength requirements, often used in signboards, billboards, building appearance decoration, lamp holders, fan blades, electronic parts, chemical instruments, sheet workpieces, deep drawing or spinning concave utensils, welding parts, heat exchangers, clock surface and disk, nameplate, reflective equipment, etc.

1070 aluminum has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, not strengthened by heat treatment, poor machinability, can accept contact welding, gas welding. Make use of its advantages to manufacture some structural parts with specific performance, such as aluminum foil gaskets and capacitors, vacuum tube isolation nets, wire, cable protective sleeves, nets, wire cores and aircraft ventilation system parts and decorative parts

Product Parameters

Width	20-3000mm or Customized	Thickness	0.3-120mm or Customized
Length	100-12000mm or Customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.6000 Series: 6061, 6063, 6082, 6A02, etc.7000 Series: 7050, 7475, 7075, etc.8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time	Received 30%, After deposit 7-15 working day
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.
Sample	Free Offers Sample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Margin

Mechanical Properties

	Tensile Strength (MPa)	Test Stress0.2% (MPa)	Hardness/HB	Elongation Rate(%)
1050	105-145	≥85	≥34	≥12
1060	110-136	≥75	35HB	6-43%
1070	≥75	≥35	-	-

Physical Performance

	Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
1050	2.71 Kg/m³	650°C	71 GPa	222 W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m
1060	2.70 Kg/m³	649°C	70-80 GPa	234 w/m K	23.6× 10-6/K	-
1070	2.70 Kg/m³	640°C	68 GPa	230 w/m K	23×10-6/K	-

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate, etc.

Xinyuan Steel Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel）

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.
