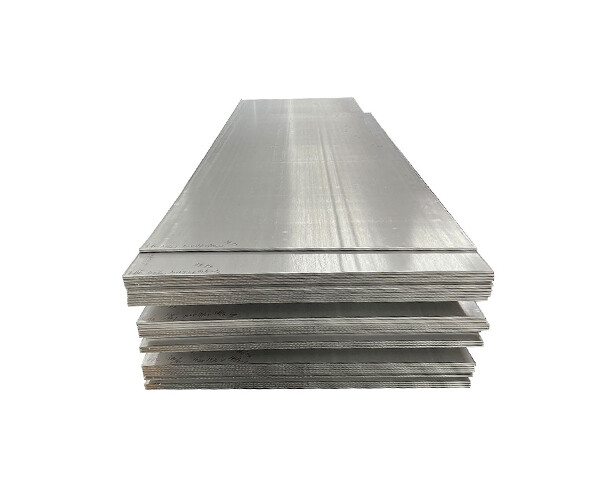

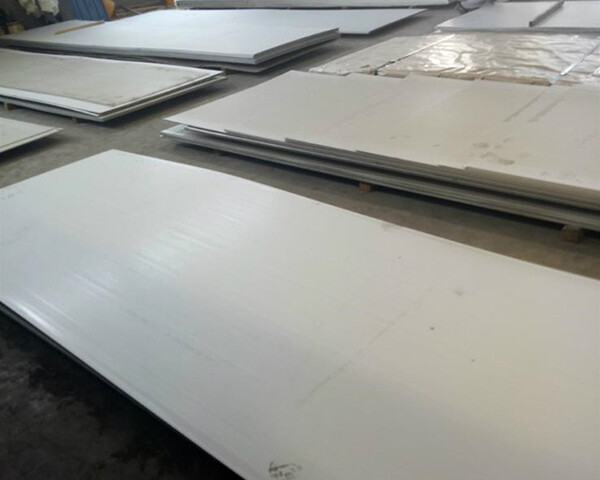

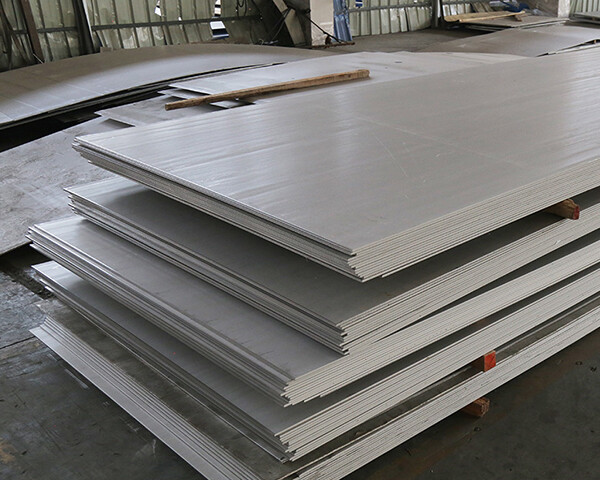

Monel 400 Plate

The chemical composition of Monel400 alloy is mainly composed of 30%Cu and 65%Ni plus a small amount of Fe(1%-2%). The structure is typical single-phase austenitic structure.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Alloy Steel > Alloy plate > Monel 400 Plate

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

Monel 400 is a corrosion-resistant alloy with the largest dosage, the most wide range of uses, and excellent comprehensive properties. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and also has excellent corrosion resistance against hot concentrated alkali liquid. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking and has good cutting performance. Monel 400 plate is widely used in many corrosive applications, particularly in the marine and chemical industries. Monel 400 can be easily machined through conventional machining operations. It is a relatively soft material suitable for thermoforming into almost any shape.

Product Parameters

Product Name	Monel 400 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Chemical Composition

Nickel, minA	Copper	lron, max	Manganese, max	Carbon, max	Silicon, max	Sulfur, max
63.0%	28.0% - 34.0%	2.5%	2.0%	0.3%	0.5%	0.024%

Mechanical Properties

Condition (Temper)	Tensile Strength, min, psi (MPa)	Yield StrengthA(0.2 % offset), min, psi (MPa)	Elongationin 2 in. or50 mm, or4D, min,%	Rockwell Hardness(B Scale)b,c
Hot-Rolled Plate
Annealed	70000 (485)	28000 (195)	35	-
As-RolledD,E	75000 (515)	40000 (275)	25	-
Hot-Rolled Sheet
Annealed	70000 (485)	28000 (195)	35	-
Cold-Rolled Sheet
Annealed	70000 - 85000 (485 - 585)	28000 (195)	35	-
Quarter-Hard	-	-	-	73 - 83
Half-Hard	-	-	-	82 - 90
Hard	100000 (690)	90000 (620)	2	-
Cold-Rolled Strip
Annealed	70000 - 85000 (485 - 585)F	28000 (195)	35F	-
Skin Hard	-	-	-	68 - 73
Quarter-Hard	-	-	-	73 - 83
Half-Hard	-	-	-	82 - 90
Three-Quarter-Hard	-	-	-	89 - 94
Hard	100000 (690)F	90000 (620)F	2F	-
Spring Temper	-	-	-	98 min

Physical Performance

Physical Performance	Units	Temperature in°C
Density	8.14 g/cm³	Room
Specific Heat	0.105 Kcal/kg.C	Room
Melting Range	1370-1400°C	-
Modulus of Elasticity	196 KN/mm²	20°
Electrical Resistivity	113 µΩ.cm	25°
Coefficient of Expansion	14.1 µm/m °C	25 - 100°
Thermal Conductivity	11.1 w/m-° K	25°

Application scenario

Marine heat exchangers, desalination equipment, salt production equipment, Marine and chemical processing equipment, propeller shafts and pumps, gasoline and water tanks, etc
