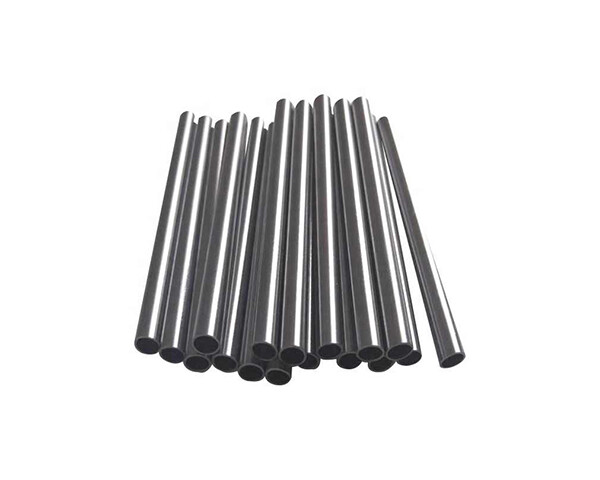

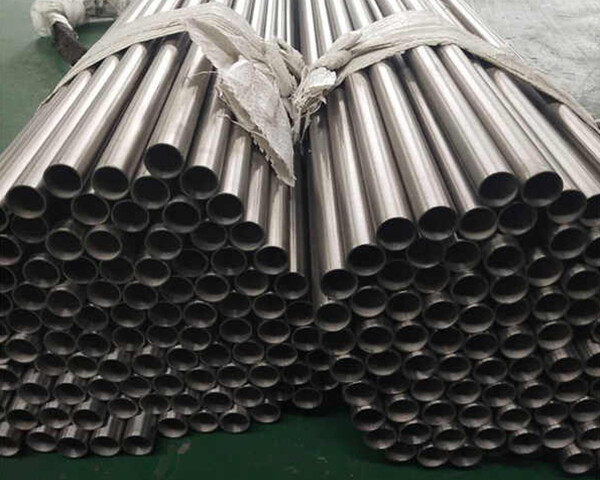

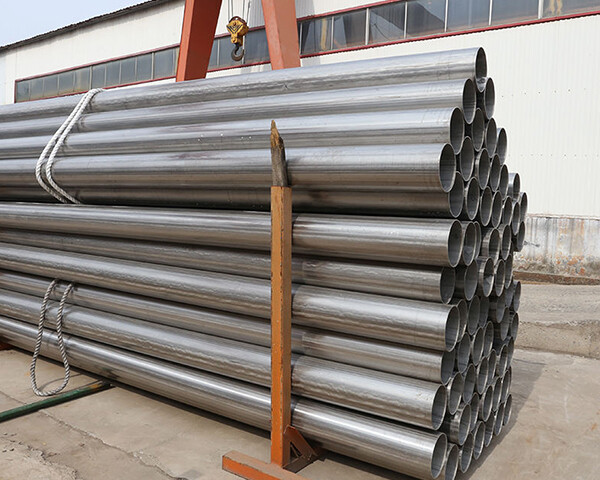

Incoloy 925 pipe
Incoloy925/alloy925 is a kind of aging strengthened iron-nickel base alloy, due to the composite effect of chromium, molybdenum and copper in the alloy, so that Incoloy925/alloy925 alloy has excellent corrosion resistance of reducing chemical media, as well as good pitting corrosion resistance of crevice corrosion.
Submit requirements
Specification parameter
Spot inventory
Product testing
Steel packing

PRODUCT  INFORMATION

Incoloy 925 alloy is mainly composed of nickel, chromium, iron and other elements, and also contains a certain amount of aluminum, titanium and other elements. This alloy has good corrosion resistance and can maintain stable performance in oxidizing and reducing environments. In addition, Incoloy 925 also has good high-temperature strength and creep properties, and can maintain good mechanical properties in high-temperature environments. Other excellent properties include excellent welding and manufacturing processability. Besides, Incoloy 925 plate can resist oxidation and hot corrosion in high-temperature oxidizing environments and has long-term stability. One thing to note is Incoloy 925 plate shows good resistance to stress corrosion cracking in chlorine-containing media and is suitable for seawater environments and chemical process applications containing chlorides.

Product Parameters

Product NameIncoloy 925 pipe
Outer DiameterRound Pipe4mm-200mm
Square Pipe10*10mm-100*100mm
Rectangular Pipe10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling


Chemical Composition

C

Al

Si

P

S

Ti

Cr

Mn

Fe

Ni

Cu

Nb

Mo

0.03 max

0.1 - 0.5

0.5 max

0.03 max

0.03 max

1.9 - 2.4

19.5 - 22.5

1.0 max

22.0 min

42.00-46.00

1.5 - 3.0

0.5 max

2.5 - 3.5



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

85

35

30



Physical Performance


Units

Temperature in°C

Density

8.14 g/cm³

Room

Specific Heat

0.105 Kcal/kg.C

Room

Melting Range

1370-1400°C

-

Modulus of Elasticity

196 KN/mm²

20°

Electrical Resistivity

113 µΩ.cm

25°

Coefficient of Expansion

14.1 µm/m °C

25 - 100°

Thermal Conductivity

11.1 w/m-° K

25°



Application scenario

Incoloy 925 is commonly used in Marine and chemical applications, especially in high temperature, high pressure and corrosive environments. It has a wide range of applications in oil and gas extraction, fertilizer production, Marine engineering and the nuclear industry.

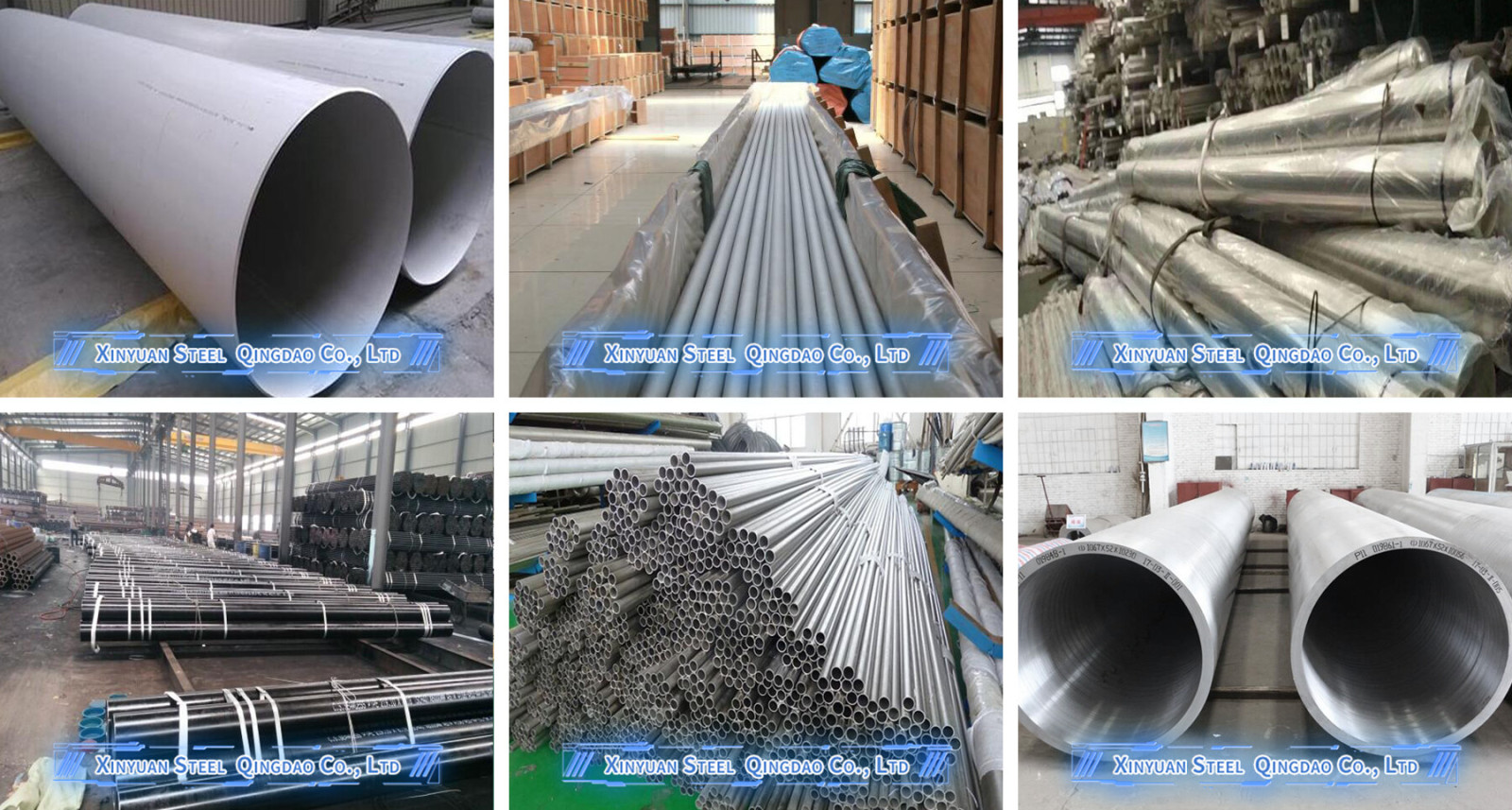

Xinyuan Steel  Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel)

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.
