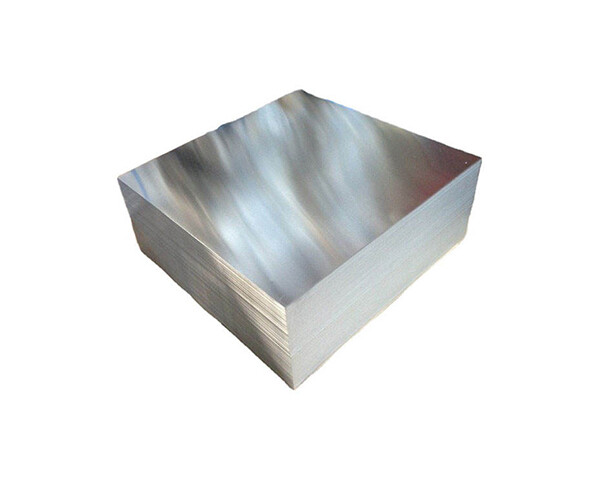

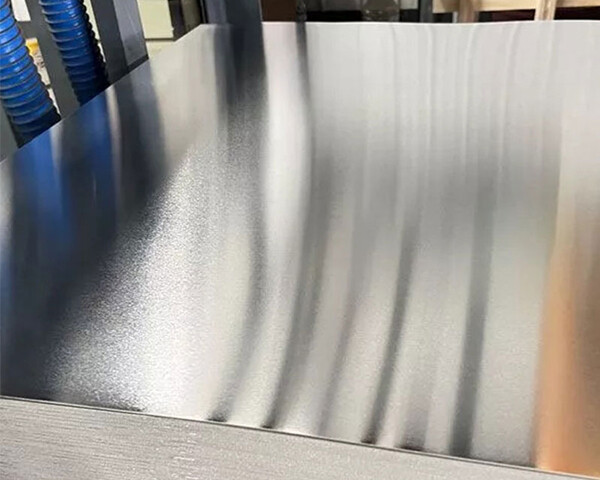

MR Food Grade Tinplate
Tinplate is available in food grade and non-food grade. The main grades are MR and SPCC. The chemical composition requirements of MR materials are stricter than those of SPCC materials and have fewer impurities.
Submit requirements
Specification parameter
Spot inventory
Product testing
Steel packing

PRODUCT  INFORMATION

Two layers of food yellow will be applied to the meat wall of the tinplate in contact with the food. This food yellow is resistant to solvents and general acid and alkali, thus ensuring the safety of the food. There is no absolute safety in using iron packaging to hold food. Current technology can fully guarantee the safety of food. MR's are a little more expensive than SPCC's, and the price is also a little higher. Because MR food grade tinplate has very good heat conductivity, many people choose to use it to make kitchen utensils such as cooking pots, baking pans, and steamers. However, before using tinplate for cooking, special treatment is required, such as rinsing, frying or boiling water to remove impurities and grease on the surface to avoid harm to the human body. In addition, when cooking with tinplate, pay attention to the acidity and alkalinity of the food to avoid chemical reactions.


Product Parameters

Product Name

MR Food Grade Tinplate

Thickness

0.18mm-0.50mm

Width

260mm-980mm

Length

Support customization

Tin Coating

General: 2.8g or 5.6g, can be produced according to your needs

Substrate Type

MR / SPCC / L / D

Reference Standard

GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203



Surface State of Tinplate

Surface State

Features

Light Surface

Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern

Stonetextured Surface

Electroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction

Silvercolor Surface

Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull

Mattless Surface

The surface of the substrate is rough and dull, and the tin plating layer is not soft melting



Substrate Type

Substrate Type

Introduction

MR

The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance

L

Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate

D

Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial

SPCC

Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.



Coating Weight

Classification

Representation of Tin Coating Weight

Tin Plating Nominal Weight (g/m2)

Minimum Average Tin Plating Weight (g/m2)

Equal Tin Plating (E)

1.1/1.1

1.1/1.1

1.8

2.2/2.2

2.2/2.2

4.0

2.8/2.8

2.8/2.8

5.0

5.6/5.6

5.6/5.6

10.5

Differentiated Tin Plating (D/A)

2.2/1.1

2.2/1.1

2.0/0.9

2.8/1.1

2.8/1.1

2.25/0.9

5.6/1.1

5.6/1.1

5.05/0.9

2.8/2.2

2.8/2.2

2.25/2.0

5.6/2.2

5.6/2.2

5.05/2.0

5.6/2.8

5.6/2.8

5.05/2.25



Chemical Composition

No.

C

Si

Mn

S

P

Cu

Ni

Cr

Mo

D

0.12

0.03

0.6

0.05

0.02

0.2

0.15

0.1

0.05

L

0.13

0.03

0.6

0.05

0.15

0.03

0.04

0.06

0.05

MR

0.13

0.03

0.6

0.05

0.2

0.2

0.2

0.1

0.05



Mechanical Properties & Applications

Standard Name

Nominal Hardness HR30TS

Strong Yield MPA

Scope of Application

T-1

49

230 /-50

Drawing requirements, drawn ironing cans, nozzles, nozzles, closures

T-2

53

245 /-50

Ring and plug, dome, closure, shallow pull and special tank parts

T-2.5

55

260 /-50

Battery cell, small can cover and body

T-3

57

275 /-50

Cans and cans, large diameter caps, crown caps

T-3.5

59

290 /-50

Can body, closure and crown lid

T-4

61

340 /-50

Can body, closure and crown lid

T-5

65

480 /-50

Cans and cans



Ordering Notes

The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.
When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as milk powder, high protein food, mushrooms, fruits, etc.;



Xinyuan Steel  Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel)

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.
