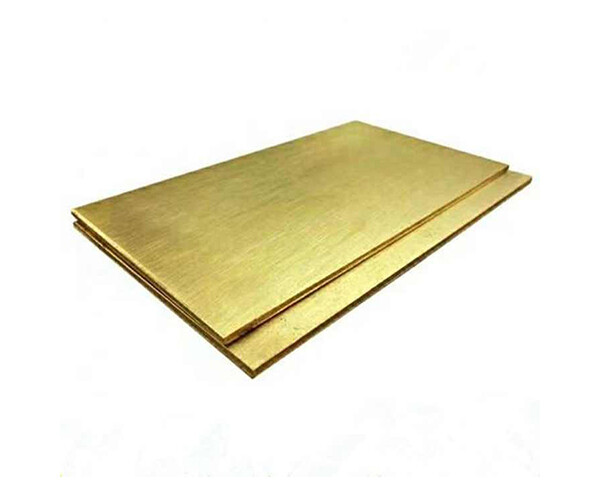

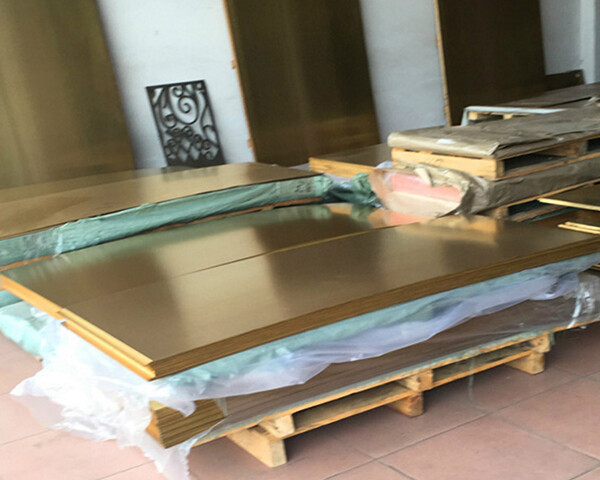

C26800/H65 Brass Plate

C26800 copper plate is made from a copper-zinc alloy known for its electrical conductivity, thermal conductivity, ductility and corrosion resistance. It consists of 68% copper and 32% zinc, and is widely used in electrical, electronics, machinery, chemical industry, architecture, art and other fields.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Copper Products > Copper plate > C26800/H65 Brass Plate

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

C26800 copper plate is favored for its excellent electrical and thermal conductivity, ductility and corrosion resistance. This alloy is mainly composed of copper and zinc. The zinc content largely determines the mechanical properties and processing properties. The electrical conductivity of C26800 copper is second only to silver and copper, making it widely used in electrical and electronic fields. Besides, C26800 copper plate maintains stable performance in most environments and is not susceptible to corrosion and oxidation. This makes it widely used in marine engineering, chemical equipment, construction hardware and other fields.

Product Parameters

Thickness	0.1-300mm or customized	Length	100-12000mm or customized
Width	10-3000mm or customized	Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Brand	C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
Surface	Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing as Required
Certification	ISO, SGS, BV, etc.	Payment Method	FOB, CRF, CIF, EXW Acceptable, etc.
Port of Loading	Any Port in China	Delivery Time	Received 30% after deposit 7-15 working days

Chemical Composition

CopperWith:	ZincZn:	LeadPb:	IronFe:	Impurity:
63.0~68.5	Allowance	≤ 0.09	≤ 0.07	≤ 0.45

Mechanical Properties

Tensile StrengthKb (MPa):	ElongationD10 (%):	Hardness:
≥390	≥25	85-145HV

Scope of Application

Uses and Applications of Copper
Power Industry	Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
Electronic Industry	Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuitCopper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical Industry	The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosionVarious media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation Industry	In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraftCopper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical Industries	In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heatingThe induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light Industry	Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
Emerging Industries and High-tech Fields	Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.

Xinyuan Steel Qingdao Co., Ltd

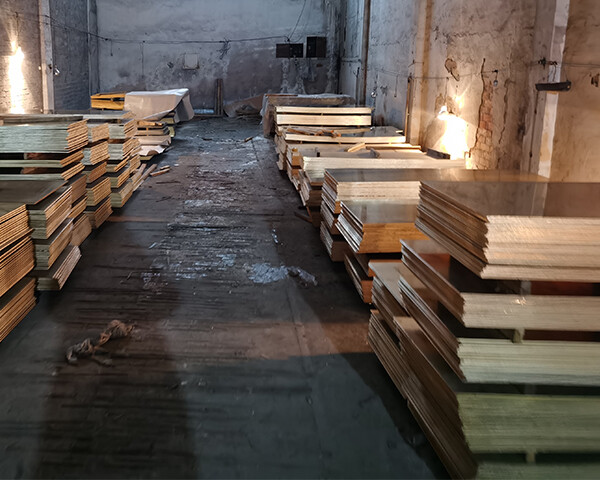

There are 16 large steel warehouses in the country, with a stock of 3 million tons
