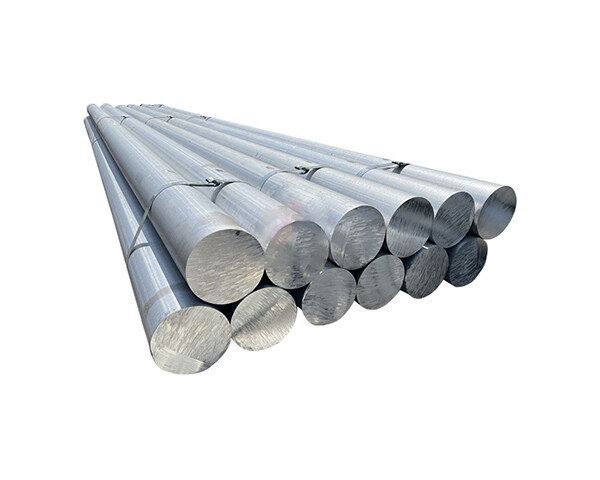

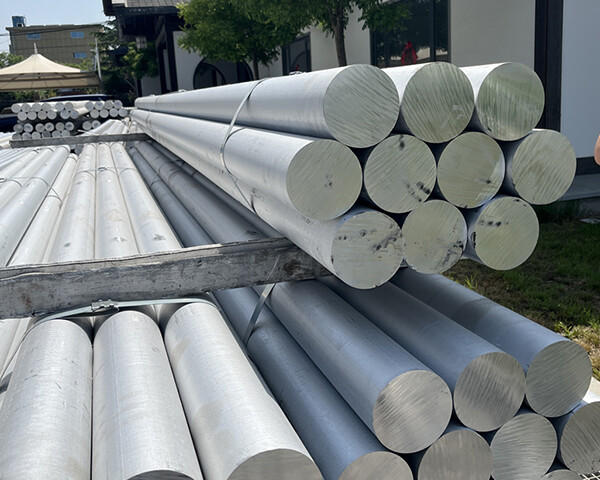

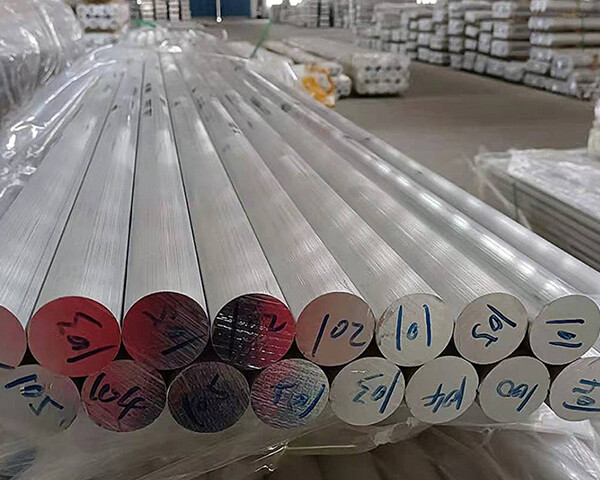

5005/5052/5754 Aluminum rod

5005 aluminum plate is made of a multifunctional alloy with a wide range of properties and uses. It has excellent corrosion resistance, excellent weldability, good formability and machinability, and medium strength. Due to its versatility, this alloy is used in many industries and applications.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Aluminum Product > Aluminium rod > 5005/5052/5754 Aluminum rod

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

5005 aluminum is a common aluminum alloy material composed of aluminum and other alloy elements. Its chemical composition mainly includes aluminum, accounting for more than 99.7%, as well as small amounts of magnesium, silicon, and iron. 5005 aluminum alloy has good oxidation resistance in atmospheric environment and can effectively resist oxidation, corrosion, fading and other problems. Besides, 5005 aluminum alloy has good plasticity and processability, and can be formed through various methods such as cold working and hot working. The process of 5005 aluminum alloy has good adjustability, and its hardness, strength, plasticity and other properties can be adjusted through appropriate heat treatment processes. 5005 aluminum plate is often used to manufacture outdoor building materials, automobile bodies, boxes due to its good corrosion resistance.

5052 aluminum alloy belongs to the Al-Mg series alloy, which is widely used, especially in the construction industry. 5052 aluminum plate has good corrosion resistance, excellent weldability, good cold workability and medium strength. 5052 aluminum alloy is the most widely used anti-rust aluminum. This alloy has high strength, high plasticity and corrosion resistance. It cannot be strengthened by heat treatment. Unlike many other aluminum alloy, it has good plasticity during semi-cold work hardening and cold work. Also, it has low plasticity when hardened, and can be easily polished. 5052 aluminum plate is mainly used for applications requiring high plasticity and good weldability.

5754 aluminum alloy has the characteristics of medium strength, good corrosion resistance, weldability and easy machining, and is a typical alloy of Al-Mg alloy. In foreign countries, 5754 aluminum alloy plates with different heat treatment states are the main materials used in the automobile manufacturing industry (car doors, molds, seals) and can industry. 5754 aluminum plate is widely used in welding structures, storage tanks, pressure vessels, ship structures and offshore facilities, transport tanks and for the requirements of excellent processing performance, excellent corrosion resistance, high fatigue strength, high weldability and medium static strength occasions.

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.6000 Series: 6061, 6063, 6082, 6A02, etc.7000 Series: 7050, 7475, 7075, etc.8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Margin

Mechanical Properties

	Tensile Strength (MPa)	Test Stress (MPa)	HardnessHV	Elongation Rate（%）
5005	≥160	≥145	46	11
5054	≥228	≥193	60	12-20
5754	≥220	≥130	-	12

Physical Performance

	Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Resistance Rate
5005	2.7 Kg/m³	655 °C	69.5 GPa	201W/m.K	0.033x10 ^-6 Ω.m
5052	2.68 Kg/m³	605 °C	70 GPa	138W/m.K	0.0495x10 ^-6 Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Xinyuan Steel Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel）

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.

PACKAGING
