1050/1060/1070 Aluminum pipe-Xinyuan Steel Qingdao Co., Ltd

Xinyuan Steel Qingdao Co., Ltd

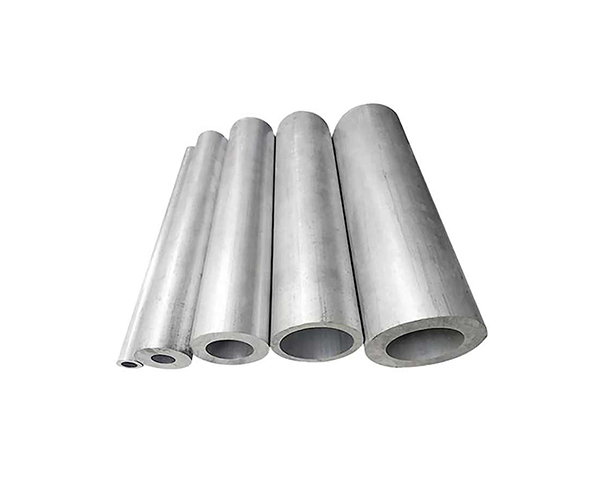

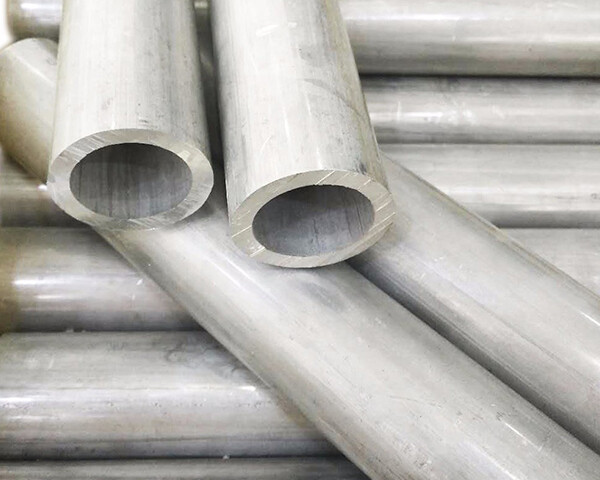

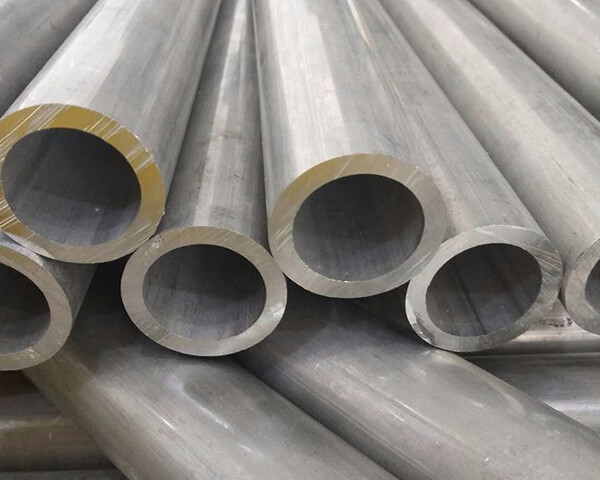

1050/1060/1070 Aluminum pipe

Aluminum plate refers to the material made of pure aluminum or alloy aluminum through pressure processing, its cross section is usually rectangular, uniform thickness. The thickness of the aluminum plate is more than one-tenth of the width, and is greater than 0.2mm, which is called the aluminum plate; The thickness of less than 0.2mm is called aluminum foil.

Telephone: +86 18153248286

E-mail: yang@xycnmetal.com

Submit requirements

Online consultation



： Home > Product > Aluminum Product > Aluminium pipe > 1050/1060/1070 Aluminum pipe

Specification parameter

Spot inventory

Product testing

Steel packing

PRODUCT INFORMATION

1050 aluminum strip is a product in the pure aluminum plate series, and the chemical composition and mechanical properties of 1060 series products are close, and the application is basically replaced by 1060 aluminum strip.1050 aluminum is often used in daily necessities, lighting appliances, reflective panels, ornaments, chemical industry containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products. In some occasions that require high corrosion resistance and formability, but the strength requirements are not high, chemical equipment is its typical use.

1060 aluminum has a wide range of applications in aerospace, transportation and other industrial fields, and is often subjected to impact loads under high temperature and high pressure conditions in a variety of other complex working environments. Its main uses are as follows: used in products with low strength requirements, often used in signboards, billboards, building appearance decoration, lamp holders, fan blades, electronic parts, chemical instruments, sheet workpieces, deep drawing or spinning concave utensils, welding parts, heat exchangers, clock surface and disk, nameplate, reflective equipment, etc.

1070 aluminum has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, not strengthened by heat treatment, poor machinability, can accept contact welding, gas welding. Make use of its advantages to manufacture some structural parts with specific performance, such as aluminum foil gaskets and capacitors, vacuum tube isolation nets, wire, cable protective sleeves, nets, wire cores and aircraft ventilation system parts and decorative parts

Product Parameters

Wall Thickness	0.4-20mm or customized	Length	5-2000mm or customized
Outer Diameter	10-2500mm or customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050 1060 1070 1100 1200 1235 etc.3000 Series: 3003 3004 3005 3104 3105 3A21 etc.5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.6000 Series: 6061 6063 6082 6A02 etc.7000 Series: 7050 7475 7075 etc.8000 Series: 8A06 8011 8090 etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Margin

Mechanical Properties

	Tensile Strength (MPa)	Test Stress0.2% (MPa)	Hardness/HB	Elongation Rate(%)
1050	105-145	≥85	≥34	≥12
1060	110-136	≥75	35HB	6-43%
1070	≥75	≥35	-	-

Physical Performance

	Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion	Resistivity
1050	2.71 Kg/m³	650°C	71 GPa	222 W/m.K	24 × 10-6/K	0.282 × 10-6Ω.m
1060	2.70 Kg/m³	649°C	70-80 GPa	234 w/m K	23.6× 10-6/K	-
1070	2.70 Kg/m³	640°C	68 GPa	230 w/m K	23×10-6/K	-

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate, etc.
