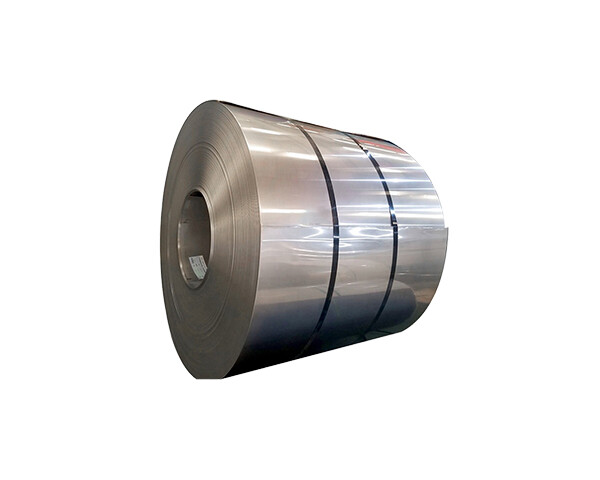

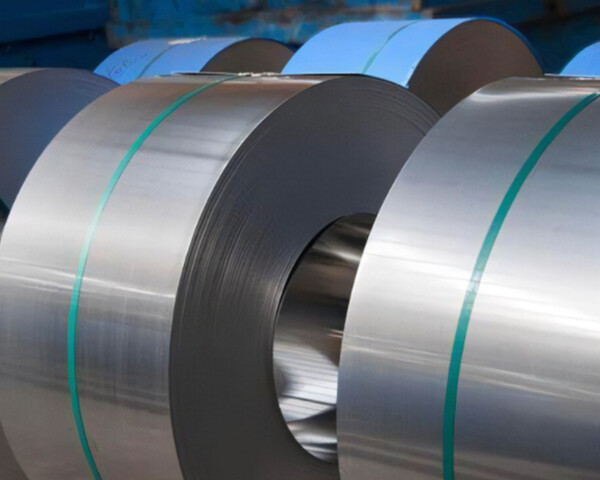

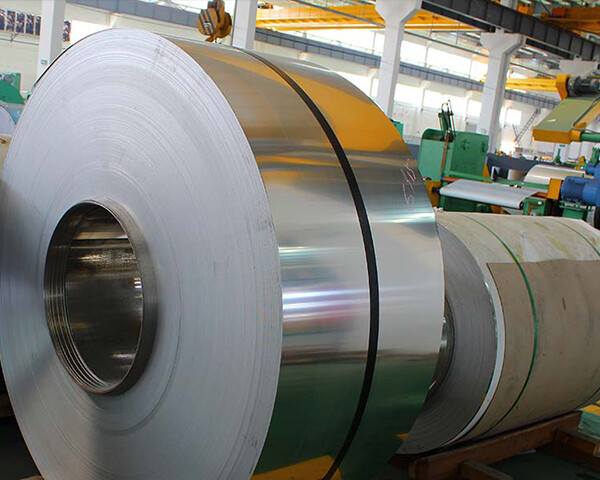

Inconel 625 coil
Inconel 625 plate is made of a nickel-based high-temperature alloy composed of nickel, chromium, molybdenum, niobium and other elements. It has excellent high temperature resistance, strength and good oxidation resistance, and is widely used in aerospace, energy, chemical industry and other fields.
Submit requirements
Specification parameter
Spot inventory
Product testing
Steel packing

PRODUCT  INFORMATION

Inconel625 alloy is a solid solution strengthened nickel-based deformed superalloy with molybdenum and niobium as the main strengthening elements. It has excellent corrosion resistance and oxidation resistance. It has good tensile and fatigue properties from low temperature to 980℃, and is resistant to stress corrosion under salt spray atmosphere. The maximum operating temperature is 950℃; The alloy has a certain age-hardening phenomenon after long-term use at 550~700℃, resulting in a decrease in the ductility of the alloy.

Product Parameters

Product NameInconel 625 coil
Thickness0.3mm-10.0 mm
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width610-2000 mm
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling


Chemical Composition

C

Mg

Al

Si

P

S

Ti

Cr

Fe

Co

Ni

Mo

Cb (Nb Ta)

0.1 max

0.5 max

0.4 max

0.5 max

0.015 max

0.015 max

0.4 max

20.00 - 23.00

5.0 max

1.0 max

58.0 min

8.0 - 10.0

3.15 - 4.15



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

120

60

30



Physical Performance


Inconel 625

Units

Temperature in°C

Density

8.44 g/cm³

Room

Specific Heat

0.098 Kcal/kg.C

21°

Melting Range

1290-1350°C

-

Modulus of Elasticity

207.5 KN/mm²

21°

Electrical Resistivity

129 µΩ.cm

21°

Coefficient of Expansion

12.8 µm/m °C

21 - 93°

Thermal Conductivity

9.8 w/m-° K

21°



Application scenario

It is widely used in the manufacture of aerospace engine components, aerospace structural components and chemical equipment. The alloy is used to make parts such as engine casings, guide blades, mounting edges and barrels, and fuel pipelines.



Xinyuan Steel  Qingdao Co., Ltd

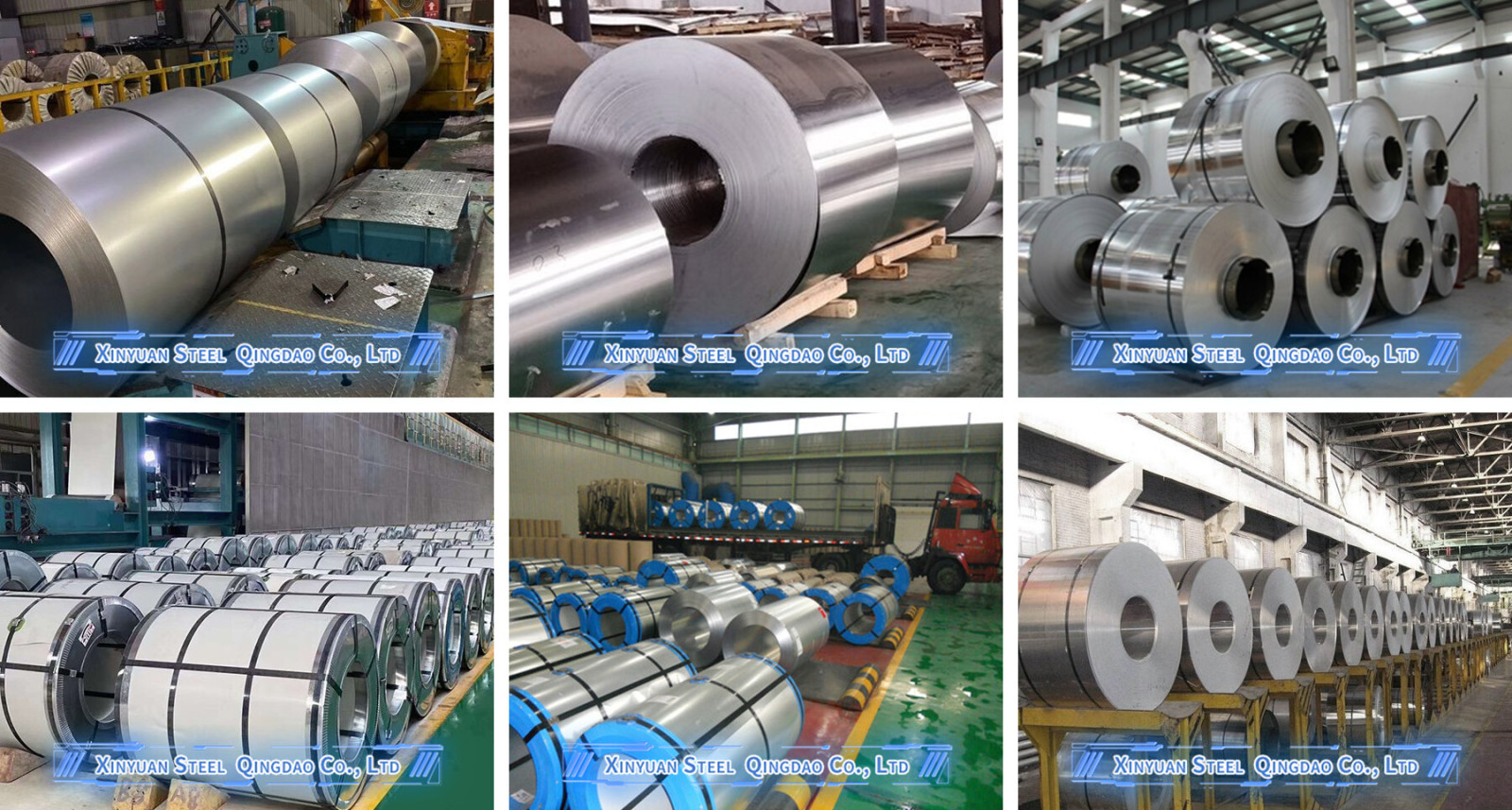

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel)

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.

PACKAGING
