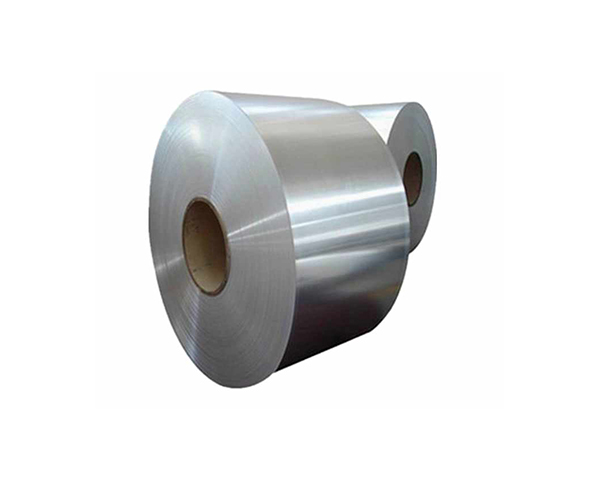

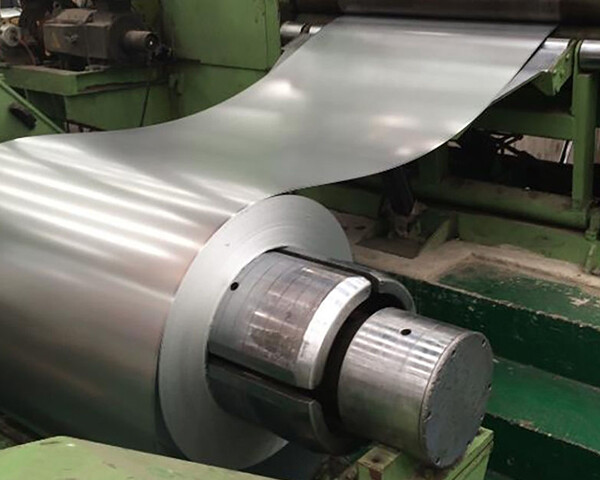

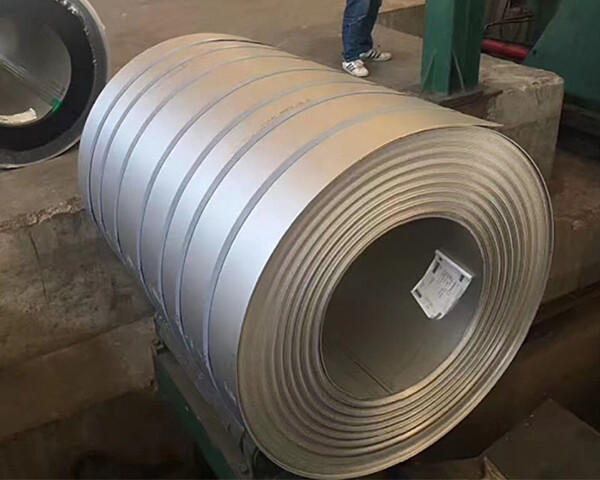

Hastelloy X coil
Hastelloy X plate is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields.
Submit requirements
Specification parameter
Spot inventory
Product testing
Steel packing

PRODUCT  INFORMATION

Hastelloy X is a nickel-chromium-molybdenum alloy with cobalt and tungsten added. Hastelloy X alloy has excellent oxidation resistance at high temperatures up to 1200°C and can also be used in neutral and reducing atmospheres. At the same time, Hastelloy X alloy is resistant to carbonization and nitriding atmospheres. Hastelloy X has good oxidation resistance and corrosion resistance, medium durability and 900°C creep strength, good formability and weldability for hot and cold working. Suitable for the manufacture of aeroengine combustion chamber parts and other high temperature parts. It can be used for a long time below 900℃, and the short-term working temperature can reach 1080℃.

Product Parameters

Product NameHastelloy X coil
Thickness2.5mm-10.0 mm
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width610-2000 mm
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling


Chemical Composition(%)

C

Si

P

S

Cr

Mn

Fe

Co

Ni

Mo

W

0.05 - 0.15

1.0 max

0.04

0.03

20.5 - 23.0

1.0 max

17.0 - 20.0

0.5 - 2.5

Remainder

8.0 - 10.0

0.2 - 1.0



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

95

35

35



Physical Performance


Units

Temperature in°C

Density

8.22 g/cm³

22°C

Specific Heat

0.116 Kcal/kg.

Room

Melting Range

1260-1355°C

-

Modulus of Elasticity

205 KN/mm²

Room

Electrical Resistivity

118.3 µΩ.cm

22°

Coefficient of Expansion

13.9 µm/m °C

26 - 93°

Thermal Conductivity

9.1 w/m-° K

21°



Application scenario

Industrial and aerospace steam turbines (combustion chambers, rectifiers, structural covers)

Industrial furnace components, support rolls, grates, belts and radiation tubes

Spiral tube of petrochemical furnace

High temperature gas cooled nuclear reactor



Xinyuan Steel  Qingdao Co., Ltd

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel)

About logistics

We will promptly deliver the goods within 24 hours after your payment, if some products are not in stock, the lead time takes 3-5 days, customer service will contact you in advance. Logistics We have a team of cooperation, the price will help you talk about the low price, if you have your own transport vehicle, you can come to the factory to pick up the goods.

About the price

The price fluctuation of the steel market is relatively large, a price a day, you should communicate with customer service in advance before placing an order, and the price of the day is the standard.

About acceptance

Please confirm the material, specifications and quantity of the product in the first time, if there are special circumstances, please propose within 7 working days, we will help you deal with it in time.

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.
