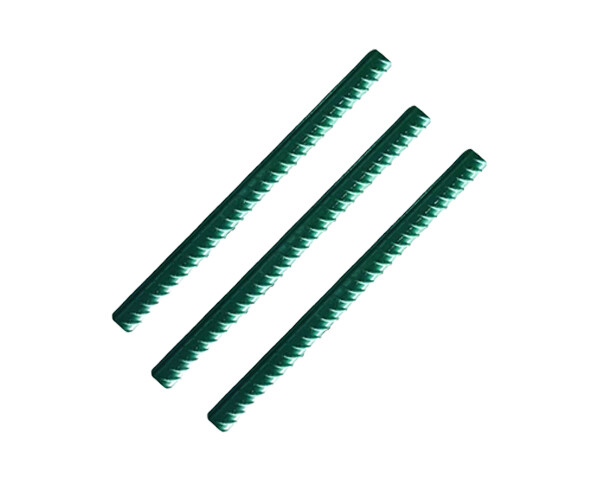

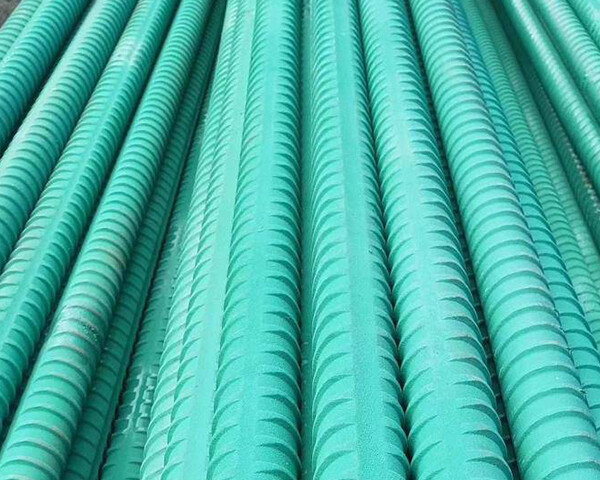

Epoxy Resin Coated Steel Bar
Epoxy resin coated steel bar is a kind of coated steel bar produced by spraying epoxy resin powder on the surface of ordinary ribbed steel bar and ordinary round steel bar by electrostatic spraying method under factory production conditions.
Submit requirements
Specification parameter
Spot inventory
Product testing
Steel packing

PRODUCT  INFORMATION

Epoxy resin coated steel bar has good corrosion resistance, but the bond strength with concrete is significantly reduced, suitable for industrial and civil houses, general structures and roads, Bridges, ports, docks and other reinforced concrete structures in humid environments or corrosive media (when used in industrial building anticorrosion engineering, it should be checked with the relevant professional standards).

Product Parameters

Grade of Base Material Reinforcement

HRB400, HRB400E, HRB500 HPB300 (Hot Rolled Round Steel Bar)

Coating Technology

EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.

Coating Standard

GB/T 25826-2010, JG/T502-2016

Conventional Diameter

10/12/14/16/18/20/22/25/28/30/32/36/38/40/50mm

Custom Diameter

6mm-50mm

Standard Length

6m/9m/12m (Length can be customized)

Use

Anti-floating anchors, bridges, railways, seaports, nuclear power, sewage tanks, petrochemical and chemical projects with corrosion resistance requirements



Chemical Composition of Base Metal

Carbon

Silicon

Manganese

Sulphur

Phosphorus

0.25%

0.80%

1.6%

0.045%

0.045%



Mechanical Properties of Base Metal

Chinese Rebar Code

Yield Strength (Mpa)

Tensile Strength (Mpa)

Carbon Content

HRB400, HRBF400, HRB400E, HRBF400E

400

540

≤ 0.25

HRB500, HRBF500, HRB500E, HRBF500E

500

630

≤ 0.25

HRB600

600

730

≤ 0.28



Scope of Application

Widely used in houses, bridges, roads, especially railways and other civil engineering.



Xinyuan Steel  Qingdao Co., Ltd

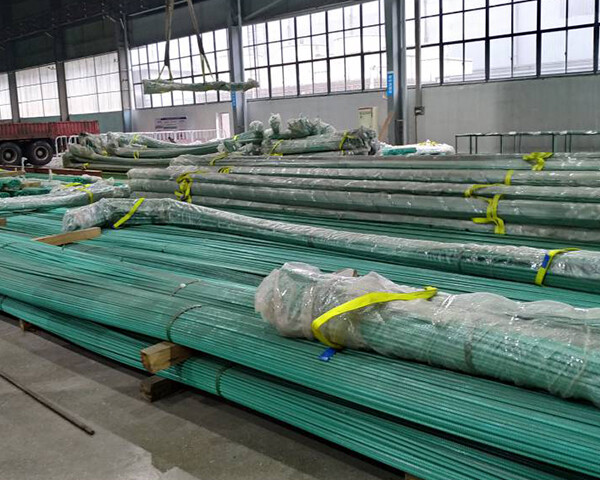

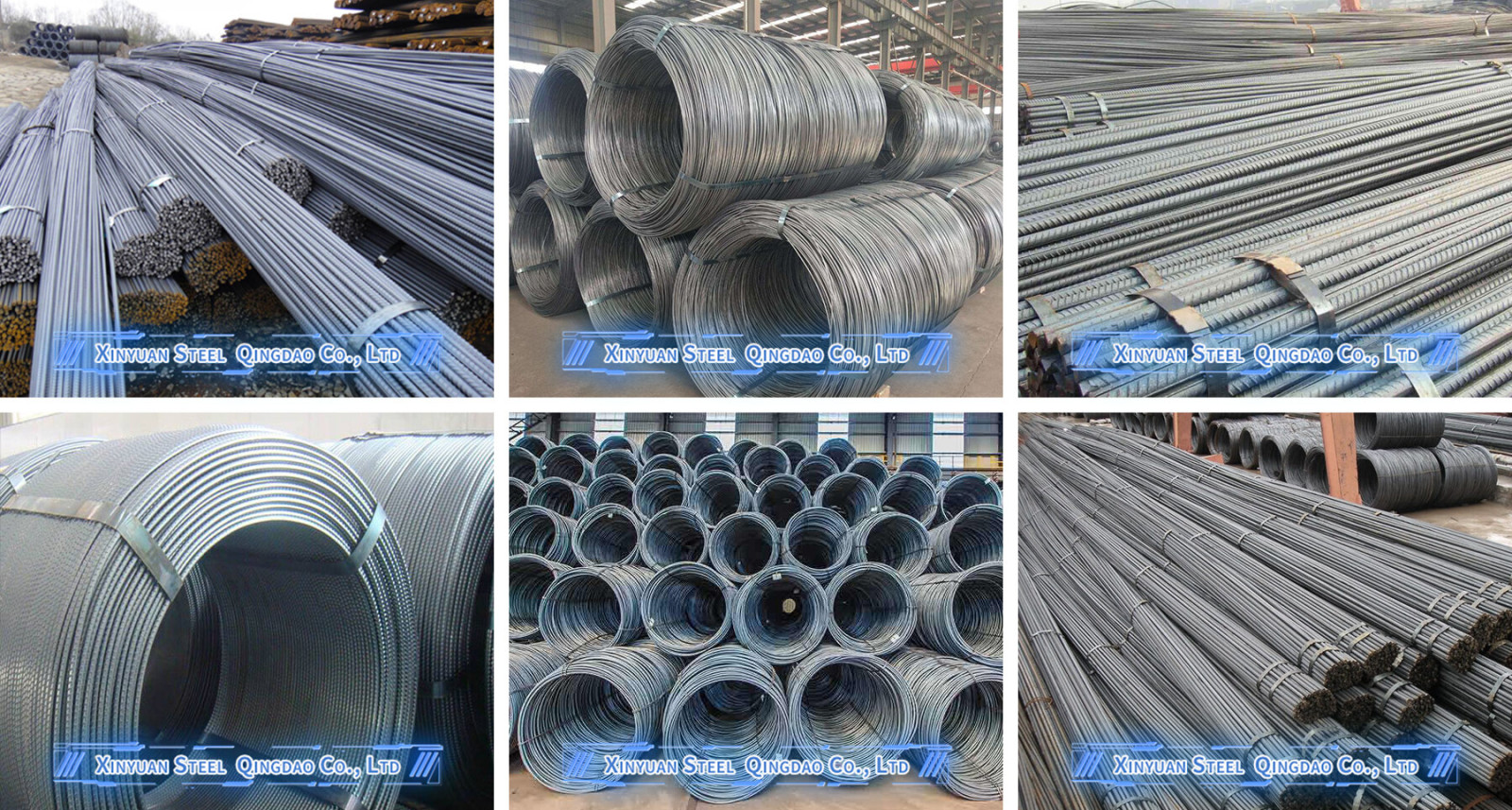

There are 16 large steel warehouses in the country, with a stock of 3 million tons

(* Note: Due to the recent surge in orders, daily real-time inventory may fluctuate, please consult the business personnel)

Steel plate flaw detection

Mechanical property test

Tensile performance test

To ensure that each post and each process of the packaging operation process have evidence to rely on, but also clear the packaging material quality and packaging operation quality control points, to ensure that the quality of packaging products is controlled, our product delivery pass rate of 100%, won high praise from customers.

Specification measurement

Coating thickness detection

Component test

Check the data again before delivery

Training staff to repeatedly bundle and other packaging basic operation skills, to further reflect our company's "high rhythm, high efficiency, high quality" service purpose.

We will package and load the car according to the needs of customers to ensure that the goods are finally delivered to your hands perfectly.
