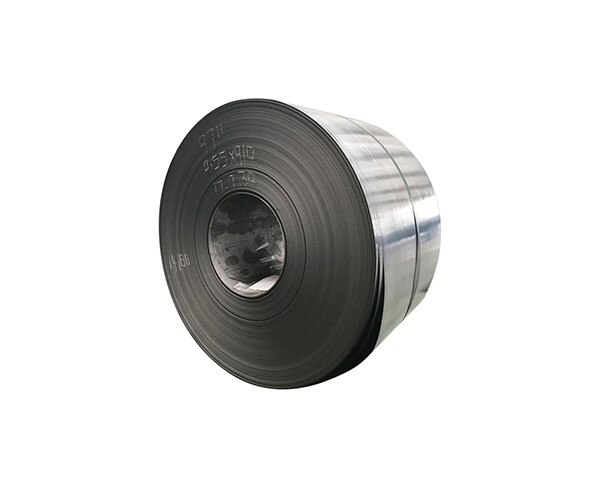

PCC was originally a Japanese standard (JIS) "General cold-rolled carbon steel sheet and steel strip" steel name, similar grades are SPCD (cold-rolled carbon steel sheet and strip for stamping), SPCE (cold-rolled carbon steel sheet and strip for deep drawing), SPCCKSPCCCE, etc. (TV special steel), SPCC4DSPCC8D, etc. (hard steel, For bicycle circles, etc.), respectively for different occasions.

Symbol: S-steel, P-plate, C-cold rolling, C-Common, D-Draw, E-deep drawing

Product Parameters

Chemical Composition

SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCD Grade: : C≦0.10; Mn≦0.50; P≦0.040; S≦0.035
SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030
SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030
SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020

Mechanical Properties

Hardness: Heat Treatment Code HRBS HV10
Annealed A – –
Annealed + Finishing S – –
1/8 hard 8 50~71 95~130
1/4 hard 4 65~80 115~150
1/2 hard 2 74~89 135~185
Full hard 1 ≥85 ≥170

Scope of Application

SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.

SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.

SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.

SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.

Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.
